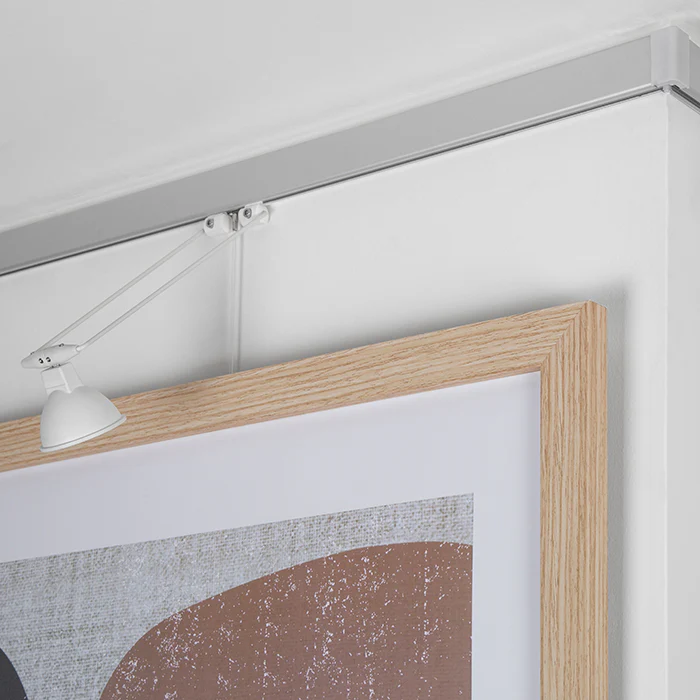

STAS multirail 200 cm + installation kit
STAS multirail adds elegance, glamour and sophistication to your space and let your works of art take centre stage.

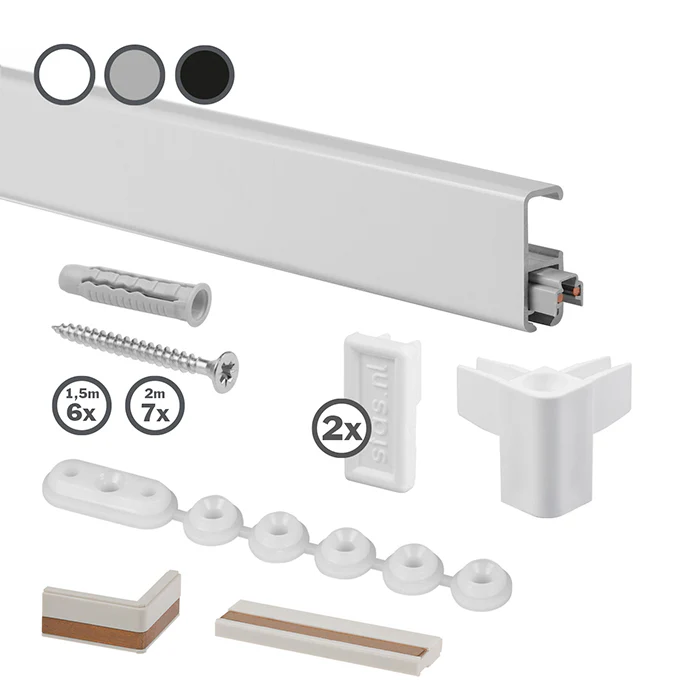

Contents
- 1x STAS multirail white, 78.74 inch (200 cm)
- 7x screw + plug
- 6x rail clip
- 1x rail connector
- 2x end cap
- 1x conductor straight
- 1x corner cap
- 1x corner conductor
A STAS multirail picture hanging system consists of:
1. Rail: indicate the number of rail segments 78.74 inch (200 cm) you wish to order. Please respect a maximum of 8 segments per adapter. The included installation kit contains all necessary plugs, screws and a straight rail connector to correctly install the rail. Corner caps and conductors are included for any corner connections.
2. Armatures: Choose the number of lighting armatures you need.
3. Choose the amount of Armatures & Lights you need (5W lamp) One Smart LED is included with each armature. This can be controlled by switch on/off or with an app or optional remote.
4. Power adapter: supplies electricity to your multirail system. One 18 W adapter will supply power to a maximum of 16 meter / 8 segments of rail, and to a maximum of 2 LED lamps (5W). 36W max 6 LED lamps of 5W & 84W adapter is 14 LED lamps (5W)
5. Hooks and cords: finally, choose STAS hooks and cords to complete the system and hang your art.
Would you like to install more than 8 segments of rail and / or more than 10 LED lamps? Please use a second adapter.
N.B Please also consider ordering the Torx screwdriver bit as the cliprail pro/ max/ multirail screws are Torx headed.
Please note hooks & cords are sold separately.
CAUTION: if you use multiple adapters, make absolutely sure you create independent circuits. In other words: two adapters cannot be connected! So, NEVER link two segments of rails that are each connected to a different adapter! You can only connect rail segments that share the same adapter.
Specifications:
- Mounting: wall mounted system suitable for most wall types.
- Power: 12 V system (low voltage).
- Dimmable: current adapters are not dimmable.
- Maximum load: 99.21 lbs (45 kg) per meter.
- Rail material: aluminium rail.

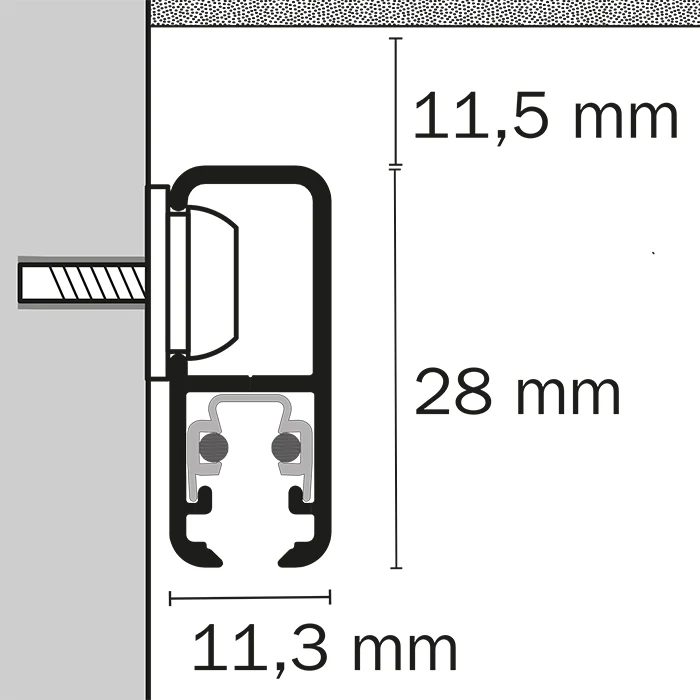

- Rail dimensions: 0.43 x 1.10 inch (11 x 28 mm).
- Rail length: 78.74 inch (200 cm) per rail segment (a maximum of 8 segments per power adapter).

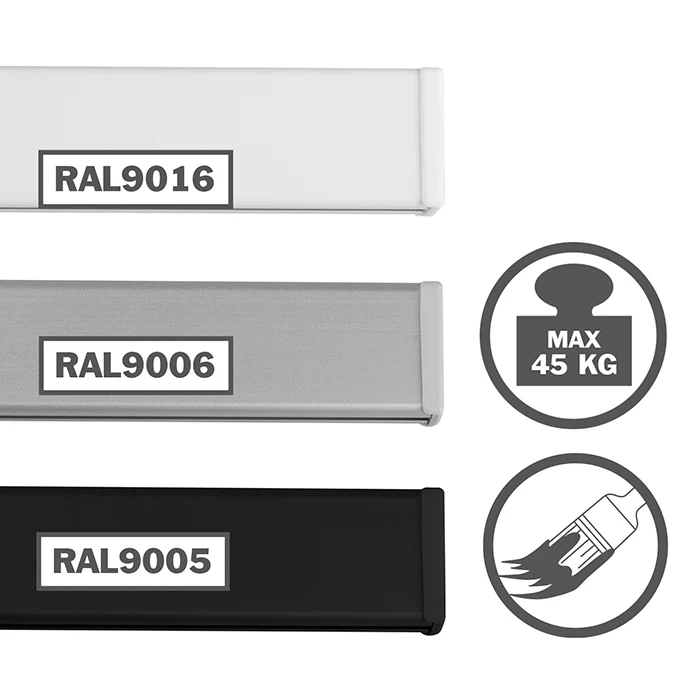

- Rail colour: white/natural aluminum
